Wet stainless steel pipe rust polishing machine

  • Home
  • Wet stainless steel pipe rust polishing machine
Wet stainless steel pipe rust polishing machine

Round tube polishing machine is also called centerless polishing machine, centerless circular polishing machine, circular polishing machine, can be divided into a single group of circular tube polishing machine and multi-station circular tube polishing machine.


down load to pdf
Details
Tags

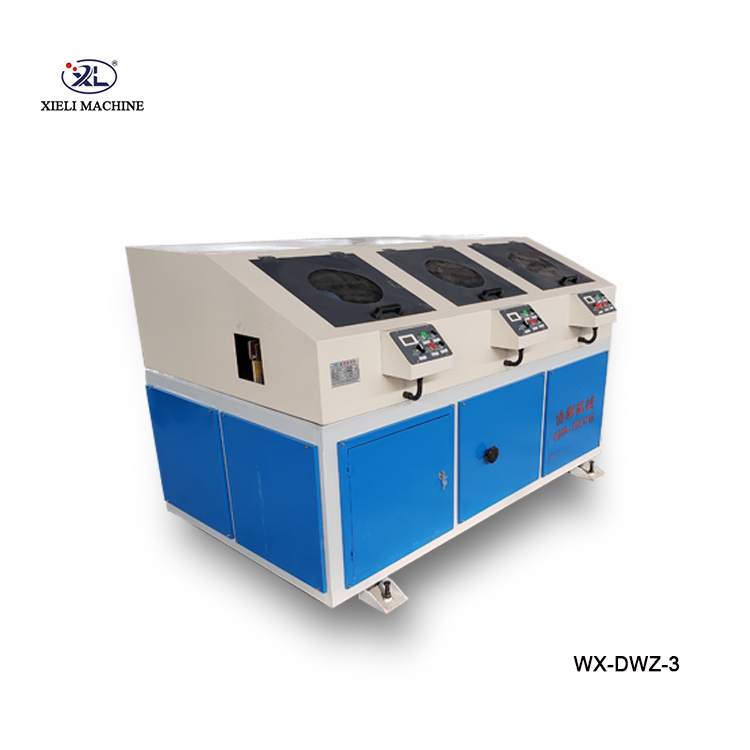

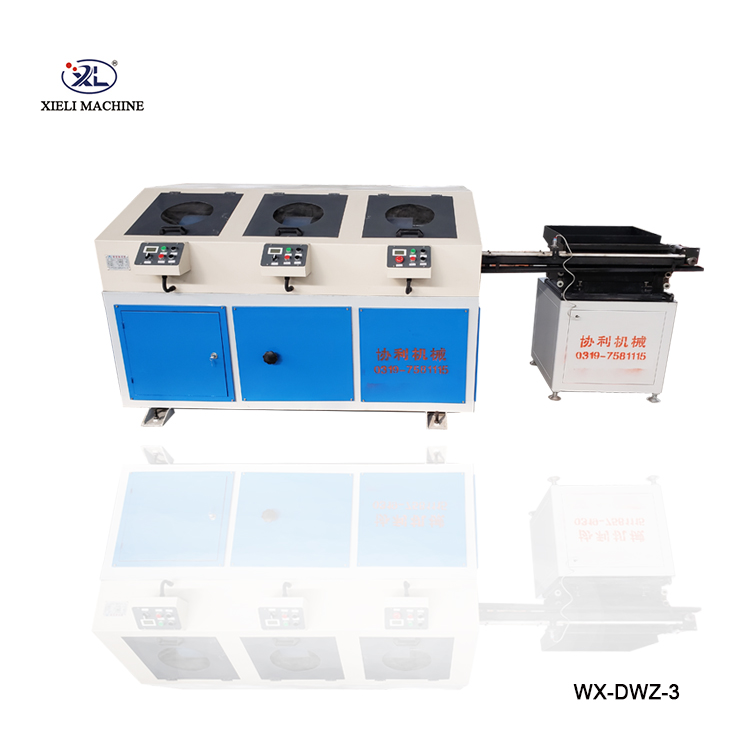

WX-DWZ Series Multi-station Round Tube Polishing Machine

Main purpose and scope of application:

 Round pipe polisher is mainly used for the derusting and polishing of hardware manufacturing, vehicle accessories, hydraulic cylinder, steel and wood furniture, instrument machinery, standard parts and industries before and after electroplating, from rough polishing to fine polishing. Round pipe polisher is the best choice for polishing the round pipe, round rod and slender shaft. The round tube polisher can be equipped with a variety of polishing wheels, such as, Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA etc. the guide wheel is stepless speed control, simple and convenient operation, and the steel structure is optimized to make the performance more stable. The reserved fan port can be equipped with a dedusting fan or a wet dedusting system, which can be matched with an automatic loading and unloading mechanism according to the length of the processed parts.

Main specification parameters:

(Special polishing equipment can be customized according to user requirements)

Project

Model

WX-DWZ-2

WX-DWZ-4

WX-DWZ-6

WX-DWZ-8

WX-DWZ-10

Input voltage(v)

380V(Three phase four wire)

Input power（kw)

8.6

18

26.5

35.5

44

Polishing wheel

specification（mm)

250/300*40/50*32（Width can be assembled）

Guide wheel

specification(mm)

100*200

Polishing wheel

speed(r/min)

3000

Guide wheel speed(r/min)

Stepless speed regulation

Machining diameter(mm)

4-100

Processing efficiency（m/min)

0-20

Surface roughness (um)

Ra 0.02

Processing length（mm）

100-6000

Wet water cycle dust removal

optional

Dry fan dust removal

optional

Feeding mode of grinding head

Digital display electric adjustable

Machine tool Total weight about（kg)

800

1600

2400

3200

4000

Equipment Overall dimension（m)

1.4*1.2*1.0

2.6*1.2*1.0

3.8*1.2*1.0

5.0*1.2*1.0

6.2*1.2*1.0



Round tube polishing machine is also called centerless polishing machine, centerless circular polishing machine, circular polishing machine, can be divided into a single group of circular tube polishing machine and multi-station circular tube polishing machine.

Round pipe polishing machine is mainly used in hardware manufacturing, vehicle parts, steel and wood furniture, instrument machinery, standard parts and other industries before and after electroplating rust and polishing, is the best choice for round pipe, round rod, slender shaft polishing.

The workpiece processed by the circular tube polishing machine has high brightness and does not affect the original size of the workpiece, which is especially suitable for the high-gloss polishing of the workpiece processed by the centerless grinder. Round tube polishing machine has high working efficiency,

Round pipe rust polishing machine is generally used in hardware, electroplating, vehicle parts, steel and wood furniture, standard parts and other manufacturing industries. It is your choice for polishing round tubes, round rods and slender shafts. The automatic 8-station square tube round tube rust remover can improve the task efficiency, improve the surface brightness of the workpiece, and make the workpiece to a higher level.

The characteristics of round pipe rust polishing machine: suitable for polishing workpiece of different sizes and diameters. Scope of application: electroplating, hardware, mold processing, gas spring rod, hydraulic parts, copper pipe copper rod, steel pipe iron rod, stainless steel pipe, aluminum pipe, handicraft processing, steel and wood furniture, gas tube, vehicle parts and other round pipe polishing industry.

The cylindrical tube rust removal and polishing machine has high task efficiency, good surface roughness of the workpiece and stable function. The machine guide wheel speed frequency conversion control (optional), so no matter the size of the workpiece diameter, length, can achieve the ideal processing efficiency.

Maintenance knowledge:

  1. 1.Surface maintenance: the surface of the polishing machine and the motor, the surface of the cooling equipment must be clean, and the polishing consumable powder must be cleared regularly. Check, tighten the handle, feed handwheel, screw, nut and other parts.
  2. 2.Polishing machine parts maintenance: check the polishing machine parts of the screw, belt, tightness level, loose should be adjusted to appropriate. Reflect on the bearing wear level if there is damage should be replaced, whether the smooth oil is sufficient. The guide rail should be cleared and clean, and there should be no polishing consumable powder on the guide rail.
  3. 3.Electrical appliances: clean the motor and electrical box regularly. Electrical equipment installation fixed, reliable operation. Secure zero installation. Check the button switch, if there is a problem, it should be replaced immediately to prevent unnecessary risks.
