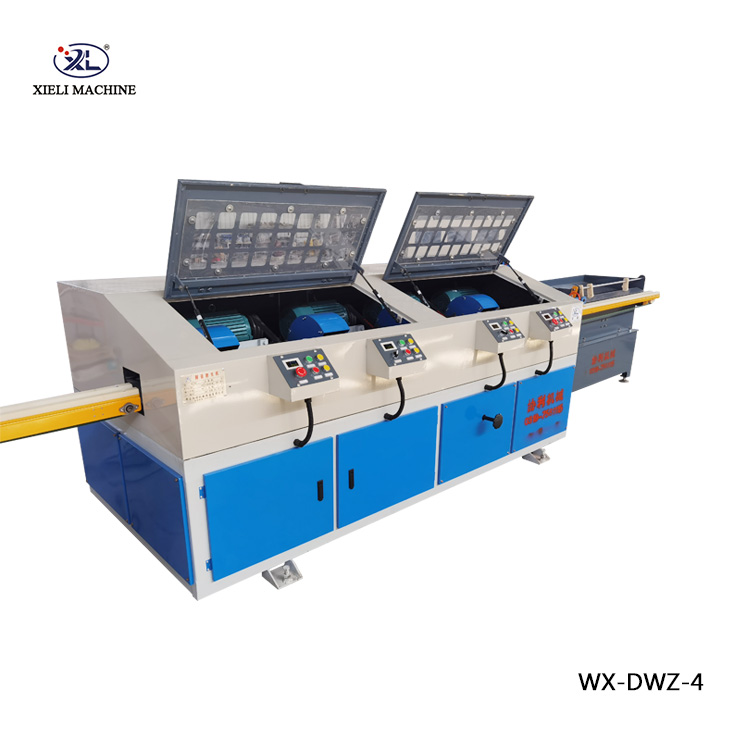

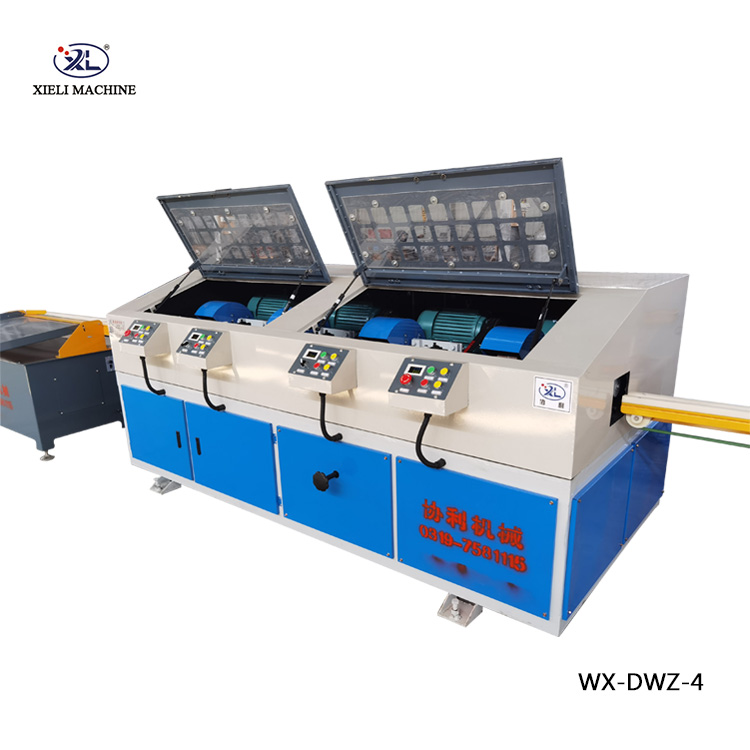

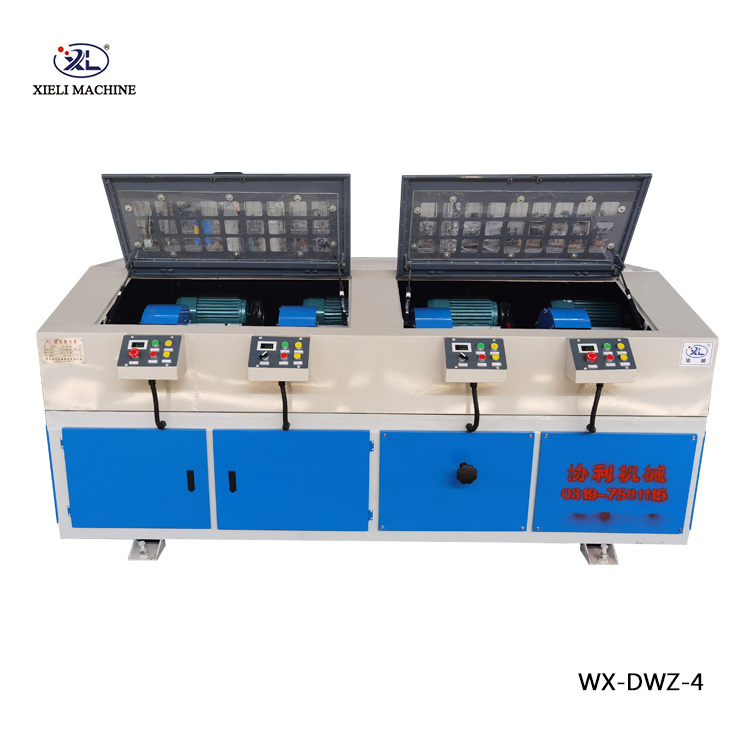

Multi-grinding head SS round pipe rust removal polishing machine

Preparatory work

1.1 Check whether the machine is placed on a flat workbench; Whether the parts are complete, whether the fasteners are loose, do a good job of cleaning.

1.2 Connect the water inlet pipe and the drainage pipe, and pay attention to the drainage place should be lower than the height of the drainage port, otherwise it will affect the discharge of waste liquid.

1.3 Check whether the power supply meets the working requirements, and whether the connection and grounding of each line are safe and reliable.

2.2 Starting

2.1 Plug the plug into the power socket and turn on the power.

2.2 Press the green switch to start the device.

Step 3 Run

3.1Paste the fabric on the disc, and apply a small amount of oil on the disc each time to facilitate the replacement of the fabric.

3.2 Press the cover tightly into the tray, and drop an appropriate amount of polishing liquid or polishing paste and water on the surface of the fabric.

3.3 Place a sump container at the outlet of the drain pipe or into a drain for the discharge of waste liquid.

3.4The cover should be covered when not in use to avoid dust or other foreign matter falling into the polishing fabric and affecting the polishing effect later.

1. 1,The round tube polishing machine has high efficiency, good finish, extensive and durable abrasive consumables, etc.

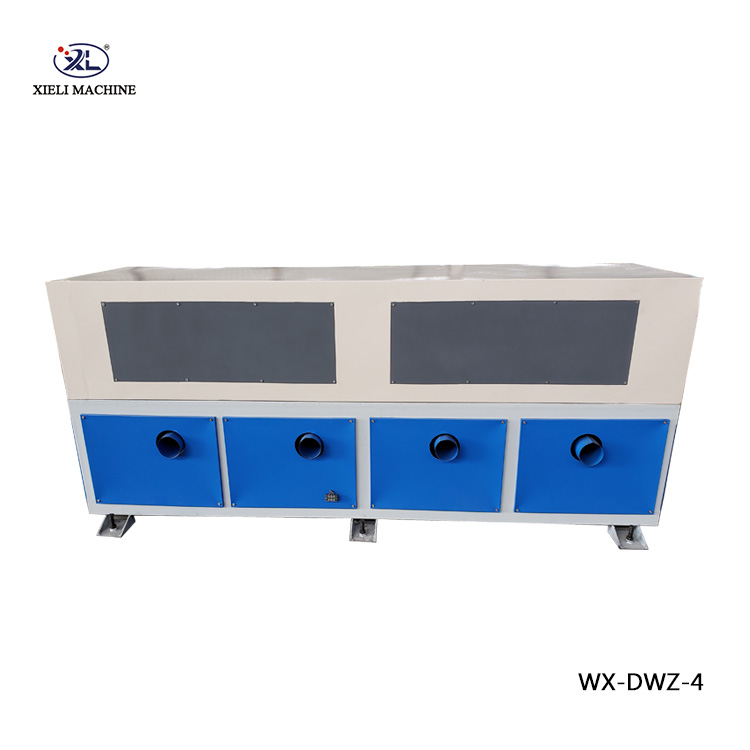

2, the machine has the advantages of simple and convenient operation, stable product performance and low noise, and is well received by the majority of users. Optional cooling system and dust collection system are used to meet different industries. This machine reserved fan port users can also install their own dust removal fan.

3, the machine guide wheel rotation using stepless speed regulation, can better meet the different diameters, different lengths of workpiece grinding or polishing. Because the guide wheel of the machine rotates by stepless speed regulation, the polishing workpiece is more efficient, the finish is better, and the abrasive consumables are extensive and durable.Round tube polishing machine tube has a circle of scratches is what kind of scratches. Common scratches are generally related to the material of polishing (such as sanding, sand grain, etc.); 2. The polishing speed is also related to the polishing direction, which only needs to slow down the speed of the polishing machine, and the direction is one-way.

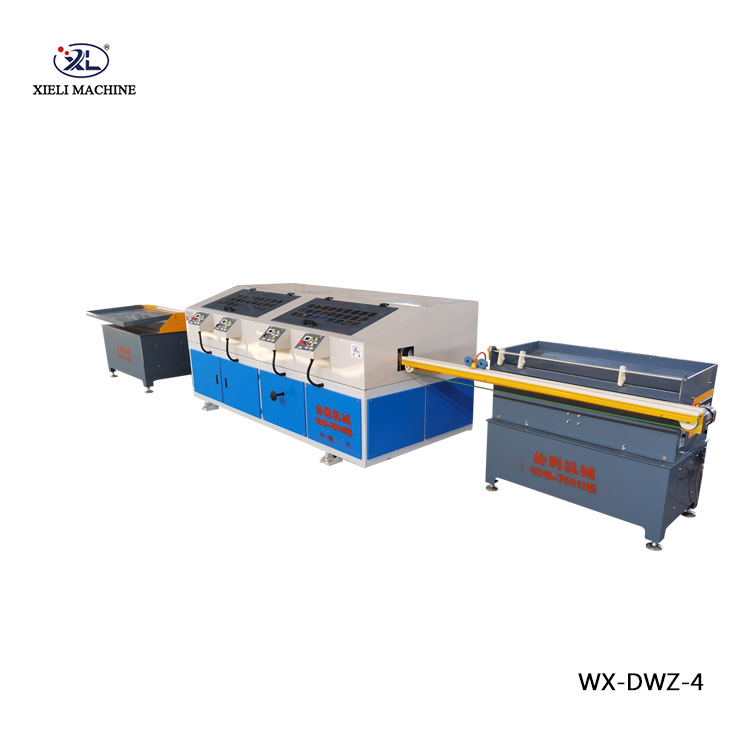

Multi-round tube polishing machine adopts the principle of centerless grinding, composed of polishing and feeding two major mechanisms, by adjusting the feed of the grinding head, the workpiece can be large margin grinding or fine grinding polishing, by adjusting the guide wheel spacing, the workpiece can be processed by different specifications of the round tube polishing machine, the machine feeding mechanism adopts stepless transmission device, you can change the feed speed of the workpiece. Make the workpiece to achieve the ideal grinding effect.
