round bar polishing machine factory price

The stainless steel round pipe polishing machine is a kind of equipment for polishing the outer surface of the round pipe, which is mainly used for polishing the surface of the pipe, steel pipe, stainless steel pipe, steel bar, aluminum and other products, which can effectively improve the surface finish and appearance quality of the product. This paper introduces the principle, application, structure, operation and maintenance of the cylindrical tube polishing machine, hoping to provide you with some reference and help.

CONTACT NOW down load to pdf

Details

Tags

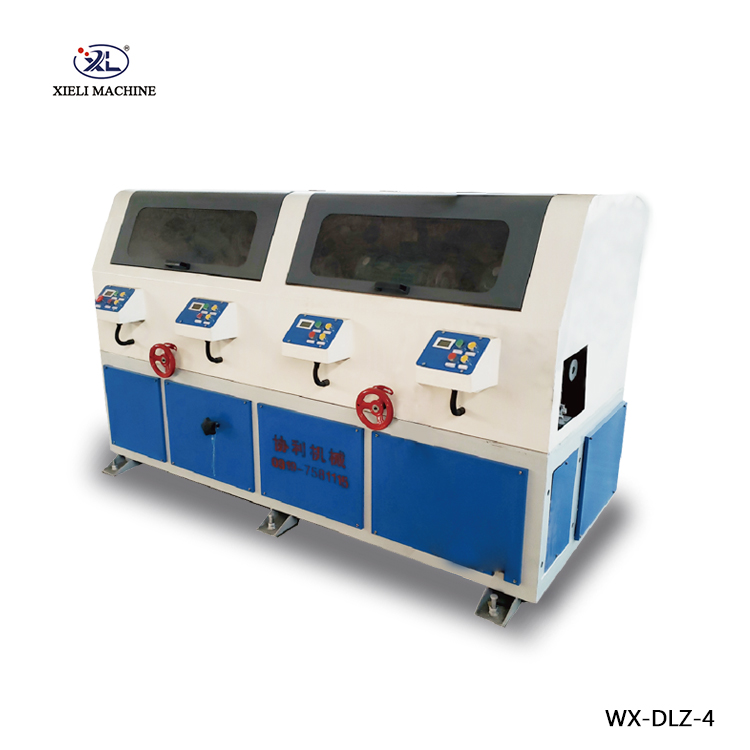

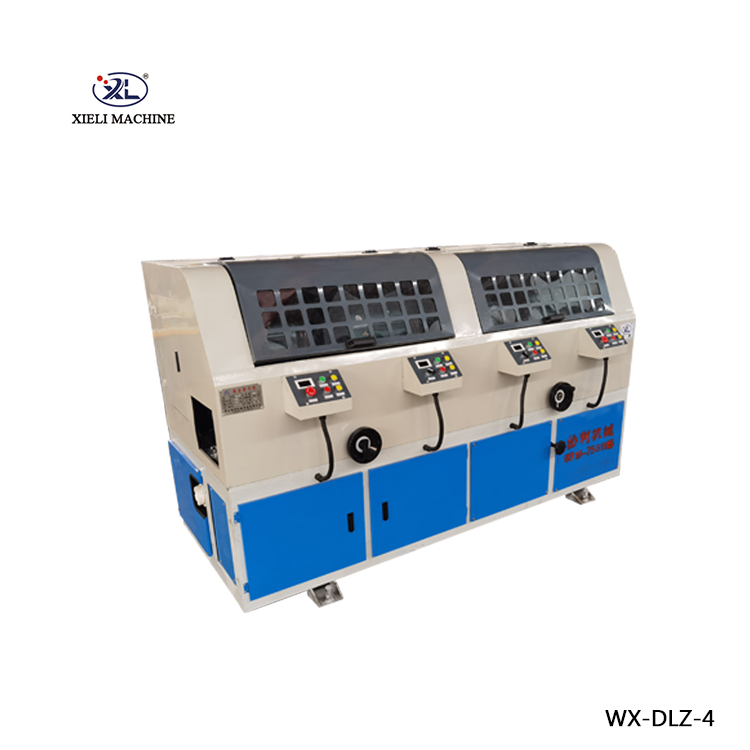

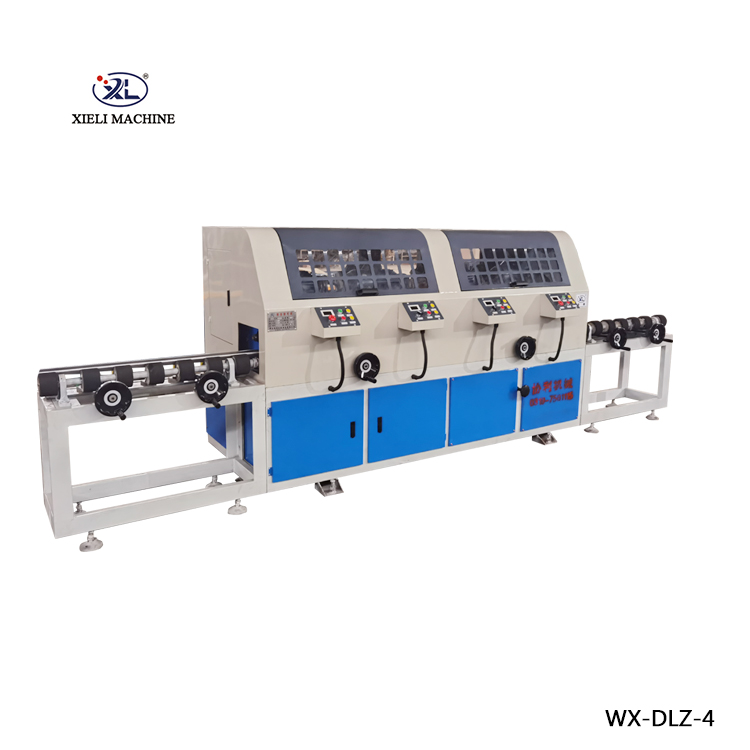

WX-DLZ Series Multi-station Vertical Polishing Machine

Main purpose and scope of application:

Round tube polisher is mainly used for the derusting and polishing of hardware manufacturing, vehicle accessories, hydraulic cylinder, steel and wood furniture, instrument machinery, standard parts and industries before and after electroplating, from rough polishing to fine polishing. Round tube polisher is the best choice for polishing the round pipe, round rod and slender shaft. Round tube polisher can be equipped with a variety of polishing wheels, such as, Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA etc. the guide wheel is stepless speed control, simple and convenient operation, and the steel structure is optimized to make the performance more stable. The reserved fan port can be equipped with a dedusting fan or a wet dedusting system, which can be matched with an automatic loading and unloading mechanism according to the length of the processed parts.

Main specification parameters:

(Special polishing equipment can be customized according to user requirements)

Project Model	WX-DLZ-2	WX-DLZ-4	WX-DLZ-6	WX-DLZ-8	WX-DLZ-10
Input voltage(v)	380V(Three phase four wire)
Input power（kw)	8.6	18	26.5	35.5	44
Polishing wheel specification（mm)	250/30040/5032（Width can be assembled）
Guide wheel specification	110*70 (mm)
Polishing wheel speed(r/min)	3000
Guide wheel speed(r/min)	Stepless speed regulation
Machining diameter(mm)	10-150
Processing efficiency（m/min)	0-8
Surface roughness (um)	Ra 0.02
Processing length（mm）	300-9000
Wet water cycle dust removal	optional
Dry fan dust removal	optional
Grinding head feeding mode	Digital display electric adjustable
Passive guide wheel adjustment method	Manual/electric/automatic optional
Machine tool total weightabout（kg)	800	1600	2400	3200	4000
Equipment dimension	1.41.21.4	2.61.21.4	3.81.21.4	5.01.21.4	6.21.21.4

the principle of stainless steel round tube polishing machine

The stainless steel round pipe cylindrical tube polishing machine mainly uses the friction between the grinding wheel and the workpiece to achieve the purpose of polishing the workpiece surface. The abrasive is added between the grinding wheel and the workpiece, and the abrasive grinding workpiece surface is accelerated by the relative friction between the wheel wheel, so as to achieve the polishing effect. In the polishing process, the appropriate grinding wheel and abrasive should be selected according to the material and specifications of the workpiece.

Second, the application of round tube pipe polishing machine

The stainless steel round pipe polishing machine is widely used in steel, stainless steel, aluminum, pipe and other industries, especially for polishing the outer surface of precision pipes and stainless steel pipes, which can effectively improve the surface finish and beauty of the product. The appearance of the polishing machine, the tedious process of manual polishing becomes easy and simple, saving a lot of labor and time costs, and the polishing process used by the polishing machine has repeatability and stability, which can greatly improve the processing efficiency and quality of the product.
