Round pipe polishing machine install EP dust cover

  • Home
  • Round pipe polishing machine install EP dust cover
Round pipe polishing machine install EP dust cover

The polishing wheel of the round tube polishing machine rotates by connecting with the motor through the polishing shaft pulley.


down load to pdf
Details
Tags

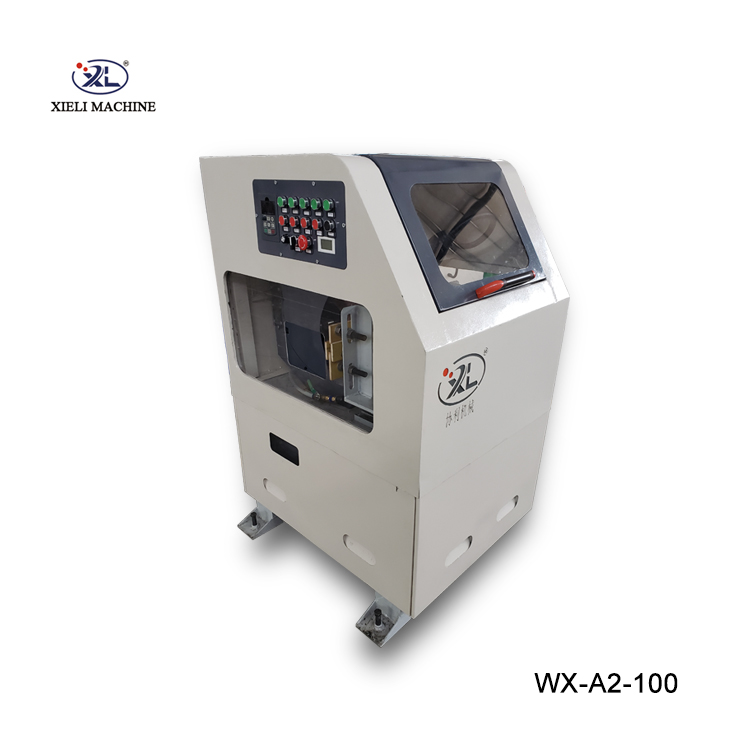

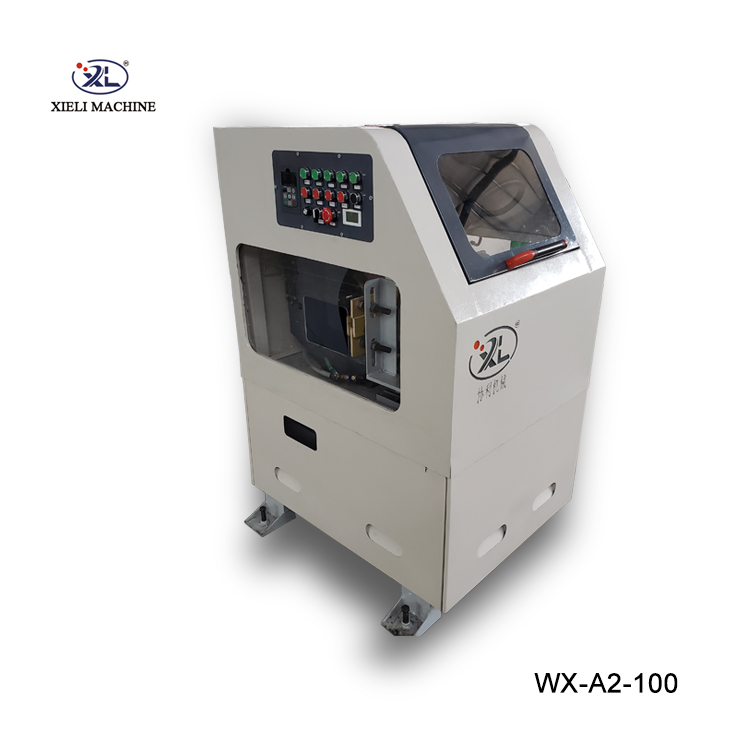

WX Series Single Grinding Head Round Tube Polisher

Main purpose and scope of application:

Round tube polisher is mainly used in hardware manufacturing, vehicle parts,hydraulic cylinders, steel and wood furniture, instrument machinery, standard parts and electroplating industries before and after the rust and polishing. Round tube polishing machine is the best choice for round tube, round rod, long and thin shaft polishing. Round tube polisher can be installed a variety of polishing wheels, such as Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA, etc., guide wheel stepless speed control, simple and convenient operation, optimize the steel structure to make the performance more stable, the fan can be installed with the fan mouth.

Main specification parameters:

(Special polishing equipment can be customized according to user requirements)









WX Series Single Grinding Head Round Tube Polisher

Project

Model

WX-A1-60

WX-A1-120

WX-A2-60

WX-B1-60

WX-B1-120

Input voltage(v)

380V(Three phase four wire)

Input power（kw)

3.5

4.5

6

4.5

4.5

Polishing wheel

specification（mm)

250*40*32（Width can be assembled）

Guide wheel

specification(mm)

230*80

230*100

230*120

Polishing wheel

speed(r/min)

3000

Guide wheel speed(r/min)

0-120（Stepless speed regulation）

Machining diameter(mm)

1-120

50-180

1-120

1-120

50-180

Processing efficiency（m/min)

0-8

Surface roughness (um)

Ra 0.02

Wet water cycle dust removal

optional

have

optional

Dry fan dust removal

optional

have

optional

Machine tool total weight about（kg)

320

460

860

520

620

Equipment overall dimension（m)

0.7*0.8*1.0

0.8*0.9*1.0

1.2*0.9*1.5

1.0*0.9*1.0

1.1*1.0*1.0

 and the guide wheel is connected with the motor through the reducer and the coupling, and is fixed on the universal rotating radial feed slide seat. A horizontal moving linear guide rail is arranged between the polishing wheel and the guide wheel of the round tube polishing machine, and two moving sliders are arranged on the guide rail, and two sections of the workpiece are fixed on the moving slider, so that the workpiece can move reciprocally on the linear guide rail.When the feed handle of the sliding table is manipulated, the guide wheel of the round tube polishing machine contacts the workpiece, the workpiece begins to rotate, the feed continues to contact the polishing wheel, and the surface of the workpiece is ground when the polishing wheel of the stainless steel tube polishing machine rotates. At the same time, the workpiece is moved axially to complete the polishing work of the workpiece.



SS Tube Polishing Machine /mirror buffing machine for stainless steel

The raw material that is often polished is usually iron or stainless steel. Stainless steel pipes are relatively easier to polish than iron pipes. Stainless steel workpieces with short lengths can be polished with a set of small and medium-sized round tube polishers. If the finish is higher, multiple round tube polishers can be used. The surface strength of the fired raw material is relatively high. One set of round tube polishers can be used for rough polishing to remove surface residues, and about five sets of round tube polishers can be used for fine polishing.

This machine is suitable for deburring and chamfering of steel pipes of various materials.
