New automatic round pipe rust removal and polishing machine

  • Home
  • New automatic round pipe rust removal and polishing machine
New automatic round pipe rust removal and polishing machine

The multi-station round tube polishing machine adopts a separate completely closed case, and the parts that often need to be adjusted are designed as trap doors, which are convenient to change and repair and beautiful to open outside. The whole flexible and simple host conveying system bloating electromagnetic speed regulating motor is driven separately, which can complete the required adjustment of various conveying speeds, and easy maintenance.


down load to pdf
Details
Tags

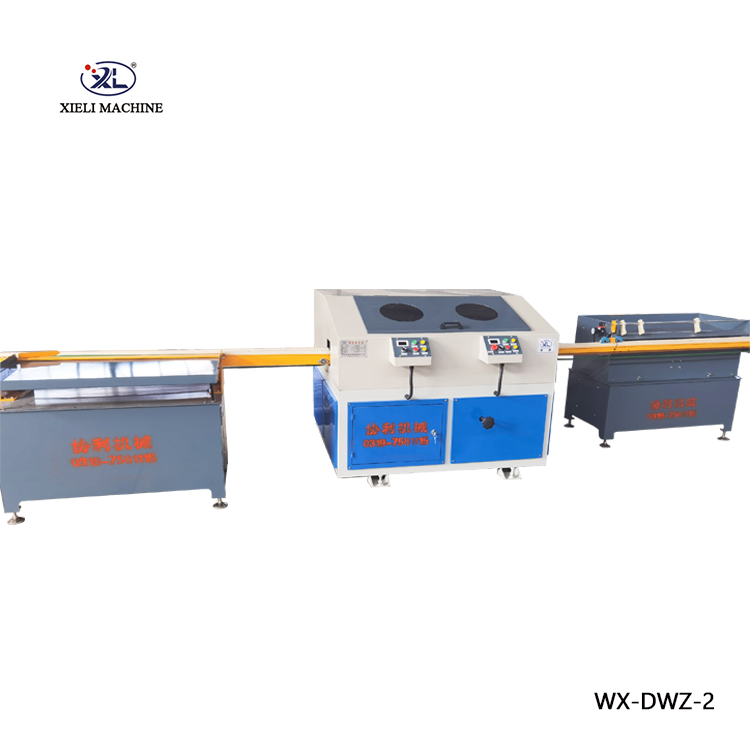

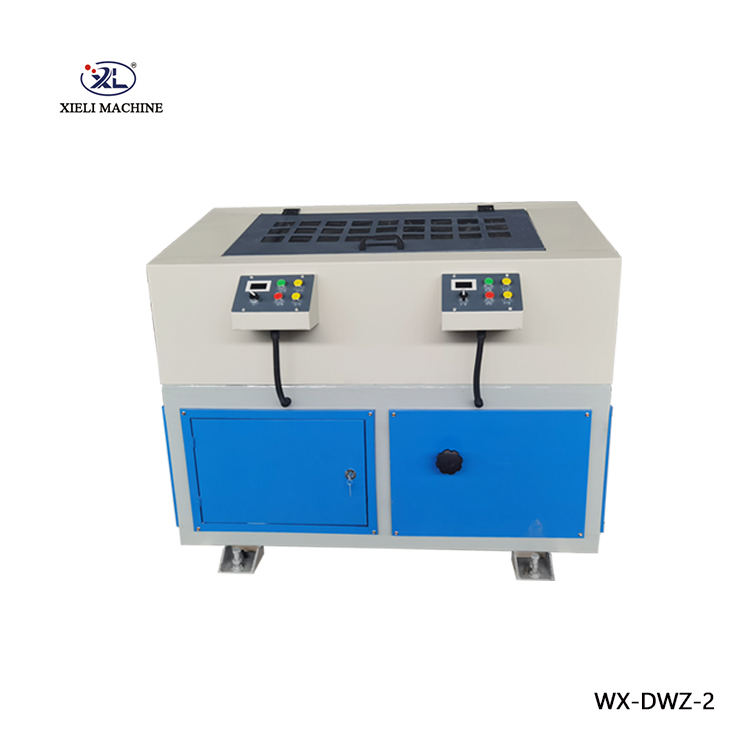

WX-DWZ Series Multi-station Round Tube Polishing Machine

Main purpose and scope of application:

 Round pipe polisher is mainly used for the derusting and polishing of hardware manufacturing, vehicle accessories, hydraulic cylinder, steel and wood furniture, instrument machinery, standard parts and industries before and after electroplating, from rough polishing to fine polishing. Round pipe polisher is the best choice for polishing the round pipe, round rod and slender shaft. The round tube polisher can be equipped with a variety of polishing wheels, such as, Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA etc. the guide wheel is stepless speed control, simple and convenient operation, and the steel structure is optimized to make the performance more stable. The reserved fan port can be equipped with a dedusting fan or a wet dedusting system, which can be matched with an automatic loading and unloading mechanism according to the length of the processed parts.

Main specification parameters:

(Special polishing equipment can be customized according to user requirements)

Project

Model

WX-DWZ-2

WX-DWZ-4

WX-DWZ-6

WX-DWZ-8

WX-DWZ-10

Input voltage(v)

380V(Three phase four wire)

Input power（kw)

8.6

18

26.5

35.5

44

Polishing wheel

specification（mm)

250/300*40/50*32（Width can be assembled）

Guide wheel

specification(mm)

100*200

Polishing wheel

speed(r/min)

3000

Guide wheel speed(r/min)

Stepless speed regulation

Machining diameter(mm)

4-100

Processing efficiency（m/min)

0-20

Surface roughness (um)

Ra 0.02

Processing length（mm）

100-6000

Wet water cycle dust removal

optional

Dry fan dust removal

optional

Feeding mode of grinding head

Digital display electric adjustable

Machine tool Total weight about（kg)

800

1600

2400

3200

4000

Equipment Overall dimension（m)

1.4*1.2*1.0

2.6*1.2*1.0

3.8*1.2*1.0

5.0*1.2*1.0

6.2*1.2*1.0



The multi-station round tube polishing machine adopts a separate completely closed case, and the parts that often need to be adjusted are designed as trap doors, which are convenient to change and repair and beautiful to open outside. The whole flexible and simple host conveying system bloating electromagnetic speed regulating motor is driven separately, which can complete the required adjustment of various conveying speeds, and easy maintenance.

When changing the production variety specifications, it is only necessary to adjust the handwheel on the vertical horizontal drive bracket in order to complete, and tighten the locking screws after adjustment. The discharge frame adopts passive roller to transport the workpiece, and the discharge work is completed by the cylinder or the discharge system.

The multi-station round tube polishing machine has a high degree of semi-automation, in addition to the feed frame using manual press feeding, the discharge frame of the main machine polishing is automatic polishing and unloading, because it can save manpower and reduce labor intensity, and realize the operation of one person and multiple machines.

The operation characteristics and precautions of the circular tube polishing machine, the use of centrifugal movement working principle, so that the machine parts and polishing abrabrines in the revolution walking process between grinding and polishing, can be processed in batch production, improve the work efficiency 10 ~ 20 times but the drop is large, the shape of the line surface of the complex workpiece, in the automatic polishing machine, choose to use the more soft and flexible Brunn, in the automatic polishing machine, Choose the cloth wheel with the characteristics of polishing contact and the base position is particularly hard.Round tube polishing machine in the use of precautions

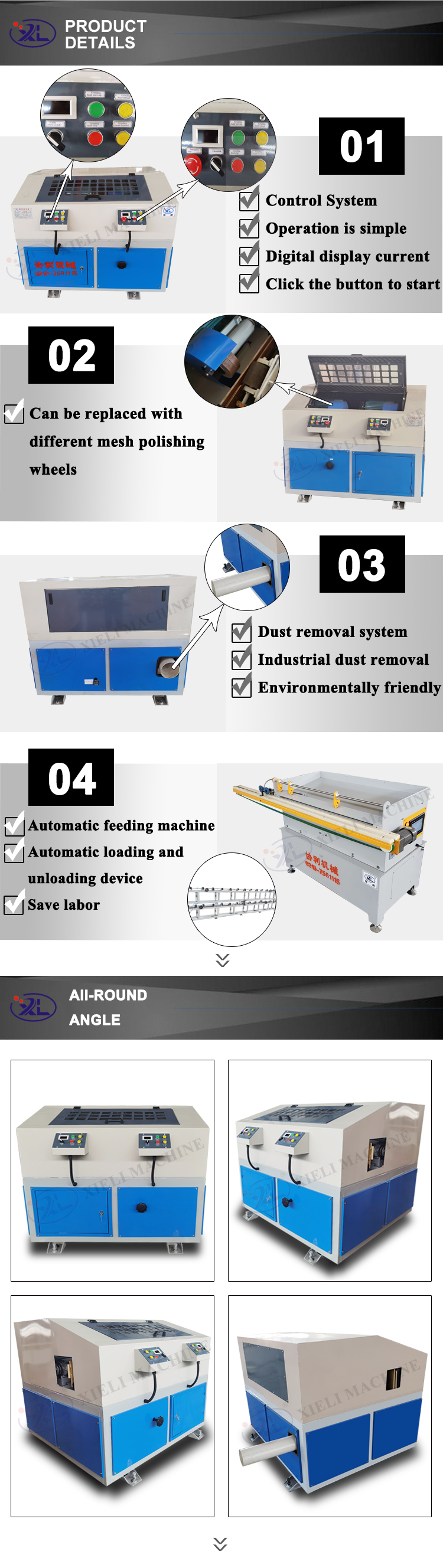

  1. a.Easy to use and maintain
  2. b.The polishing system adopts multi-stage polishing arrangement, and the amount of advance can be adjusted separately.
  3. c.The polishing head of the main machine adopts a separate completely closed chassis, and the parts that often need to be adjusted are designed as trap doors. Easy to replace and repair, beautiful outside.

d.The machine can choose a variety of polishing process specifications.

  1. e.The main machine polishing head is suitable for the installation and adjustment of various abrasive tools, and the polishing size range is large, and the combined polishing of a variety of abrasive tools can be completed at one time.
  2. f.The feed frame is driven by a pulley, which has the advantages of small size and reliable transmission.
