Auto stainless steel round tube polishing machine

The round tube polishing machine is a commonly used metal product processing equipment. The service life and performance directly affect the processing efficiency and product quality. In order to ensure the long-term stable operation of the round tube polishing machine, we need to carry out the following maintenance:

CONTACT NOW down load to pdf

Details

Tags

Read More About internal centerless grinding machine

Read More About filmatic for centerless grinder machine

WX Series Single Grinding Head Round Tube Polisher

Main purpose and scope of application:

Round tube polisher is mainly used in hardware manufacturing, vehicle parts,hydraulic cylinders, steel and wood furniture, instrument machinery, standard parts and electroplating industries before and after the rust and polishing. Round tube polishing machine is the best

choice for round tube, round rod, long and thin shaft polishing. Round tube polisher can be installed a variety of polishing wheels, such as Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA, etc., guide wheel stepless speed control, simple and convenient

operation, optimize the steel structure to make the performance more stable, the fan can be installed with the fan mouth.

Main specification parameters:

(Special polishing equipment can be customized according to user requirements)

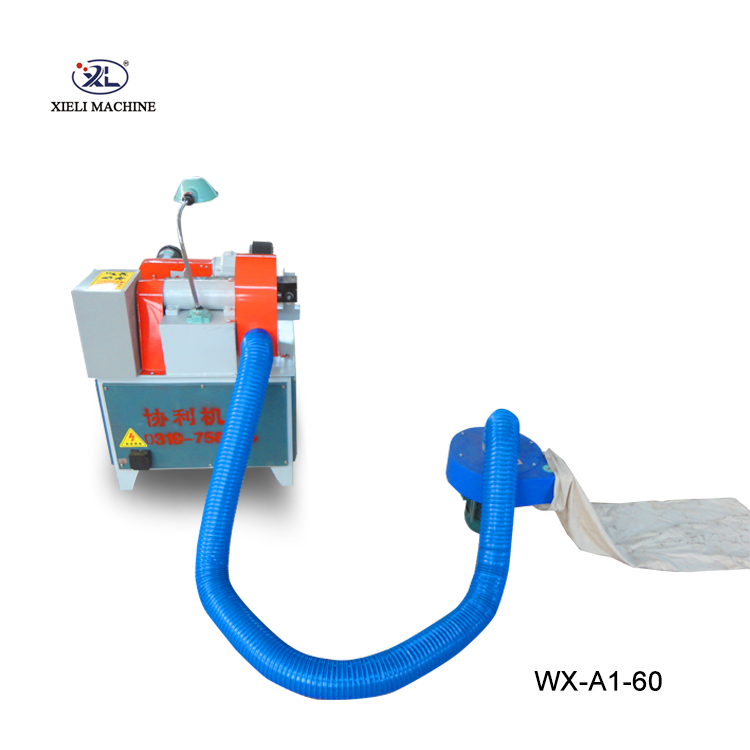

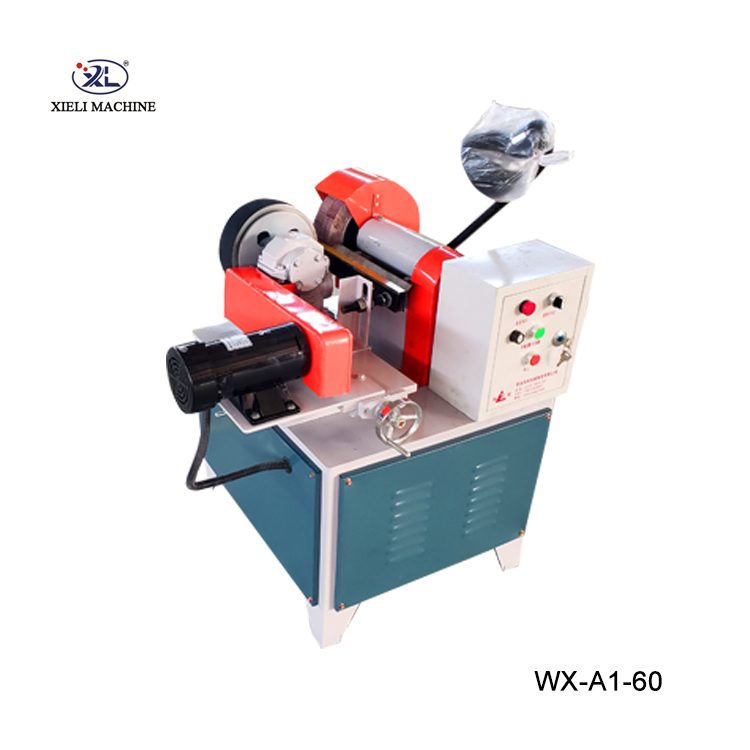

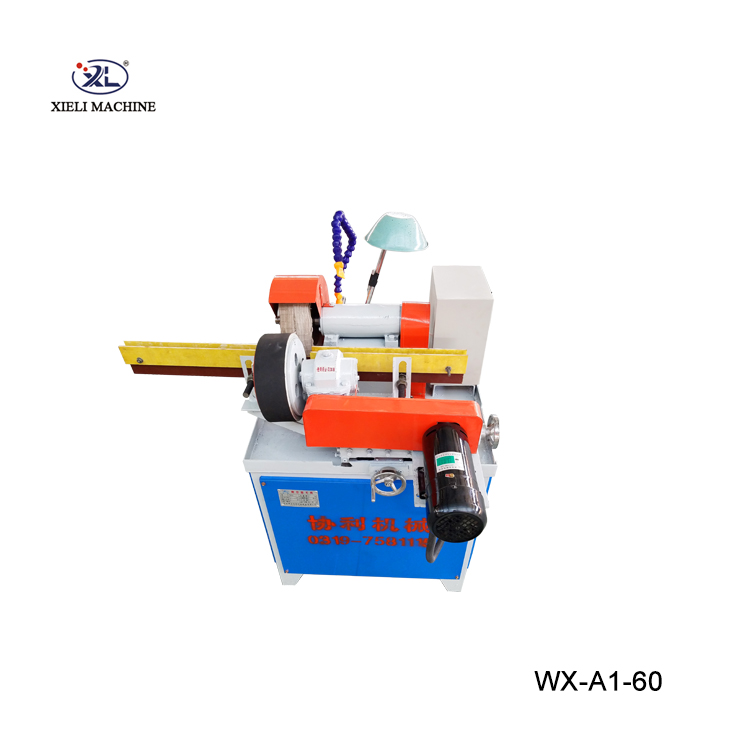

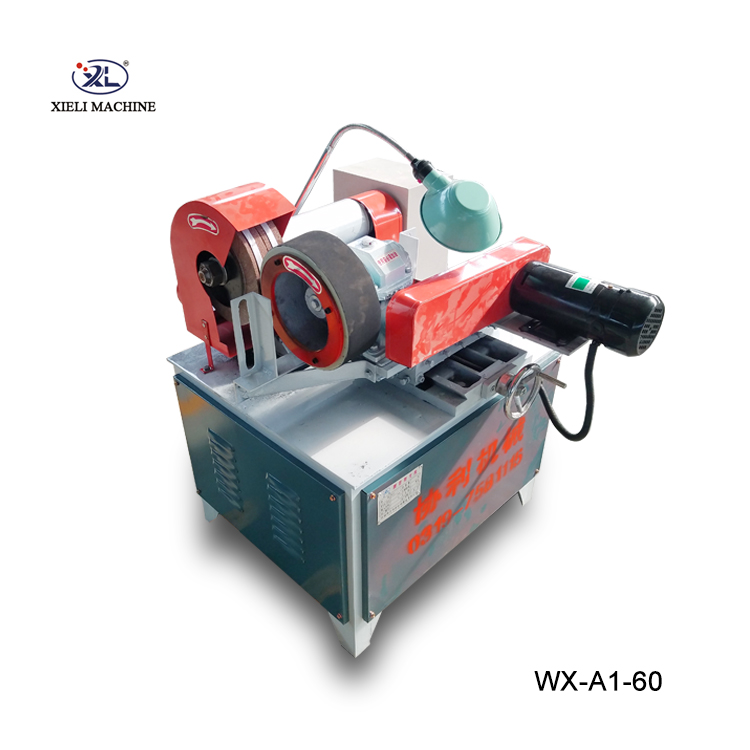

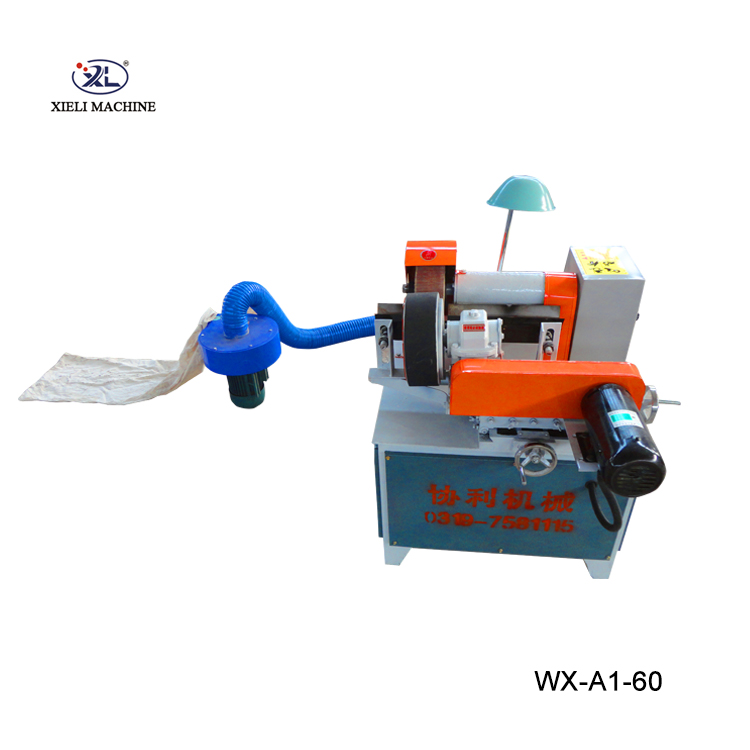

WX Series Single Grinding Head Round Tube Polisher
Project Model	WX-A1-60		WX-A1-120	WX-A2-60	WX-B1-60	WX-B1-120
Input voltage(v)	380V(Three phase four wire)
Input power（kw)	3.5		4.5	6	4.5	4.5
Polishing wheel specification（mm)	2504032（Width can be assembled）
Guide wheel specification(mm)	230*80			230*100	230*120
Polishing wheel speed(r/min)	3000
Guide wheel speed(r/min)	0-120（Stepless speed regulation）
Machining diameter(mm)	1-120	50-180		1-120	1-120	50-180
Processing efficiency（m/min)	0-8
Surface roughness (um)	Ra 0.02
Wet water cycle dust removal	optional			have	optional
Dry fan dust removal	optional			have	optional
Machine tool total weight about（kg)	320		460	860	520	620
Equipment overall dimension（m)	0.70.81.0		0.80.91.0	1.20.91.5	1.00.91.0	1.11.01.0

The round tube polishing machine is a commonly used metal product processing equipment. The service life and performance directly affect the processing efficiency and product quality. In order to ensure the long-term stable operation of the round tube polishing machine, we need to carry out the following maintenance:
1.Regular cleaning: A large amount of metal shavings and abrasive particles will be produced during the use of the round tube polishing machine. If it is not cleaned in time, it will increase the risk of equipment wear and failure. Therefore, it needs to be cleaned after each use, and the accumulated material and dust inside the equipment should be cleaned regularly.
2.Regular lubrication: Equipment failure caused by friction and wear is one of the main problems of the polishing machine, so it is necessary to regularly lubricate the friction parts of the equipment to reduce wear and keep the equipment running smoothly.
3.Check the electrical part: check the cables, wiring and switches of the electrical part to ensure that the electrical components work normally and safely, and replace damaged cables and parts in time.
4.Regular replacement of grinding wheels and abrasive belts: grinding wheels and abrasive belts directly affect the processing quality and equipment life, so they need to be replaced regularly according to the frequency and time of equipment use.
5.Regularly test the accuracy of equipment: regularly test the accuracy of equipment, such as measuring the size of parts, surface roughness and other indicators, and deal with abnormalities in time.
