Yeni SS boru dış yuvarlak pas giderme parlatma makinesi

Round pipe polishing machine is mainly used in hardware manufacturing, vehicle parts, steel and wood furniture, instrument machinery, standard parts and other industries before and after electroplating rust and polishing, is a good choice for round pipe, round rod, slender shaft polishing.

Share:
  • Products Detail

    Read More About high quality table top centerless grinder

    Read More About high quality table top centerless grinder

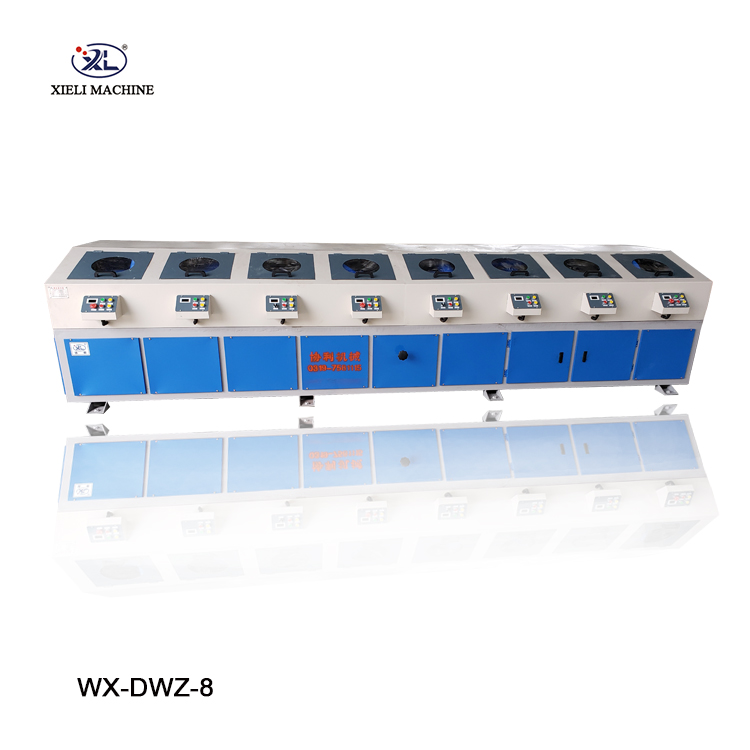

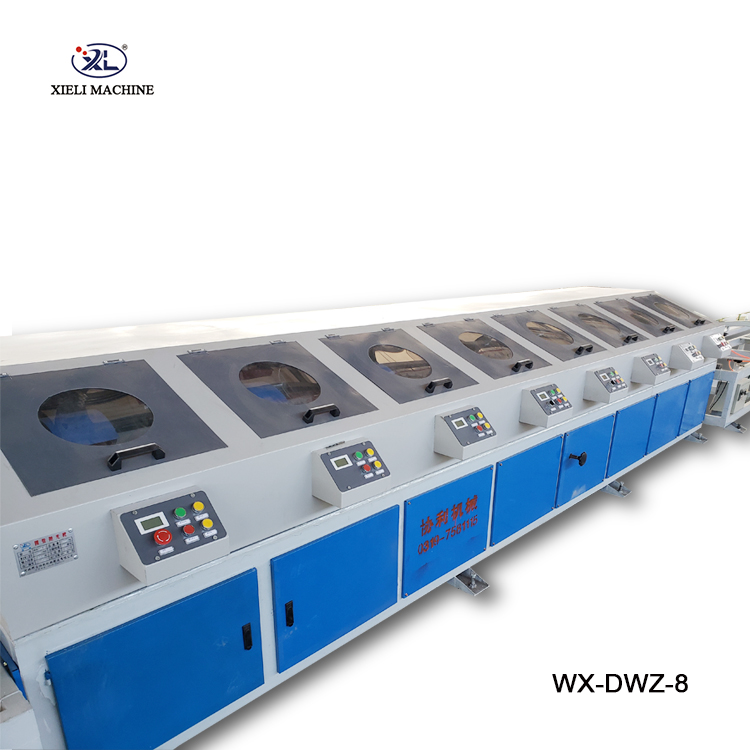

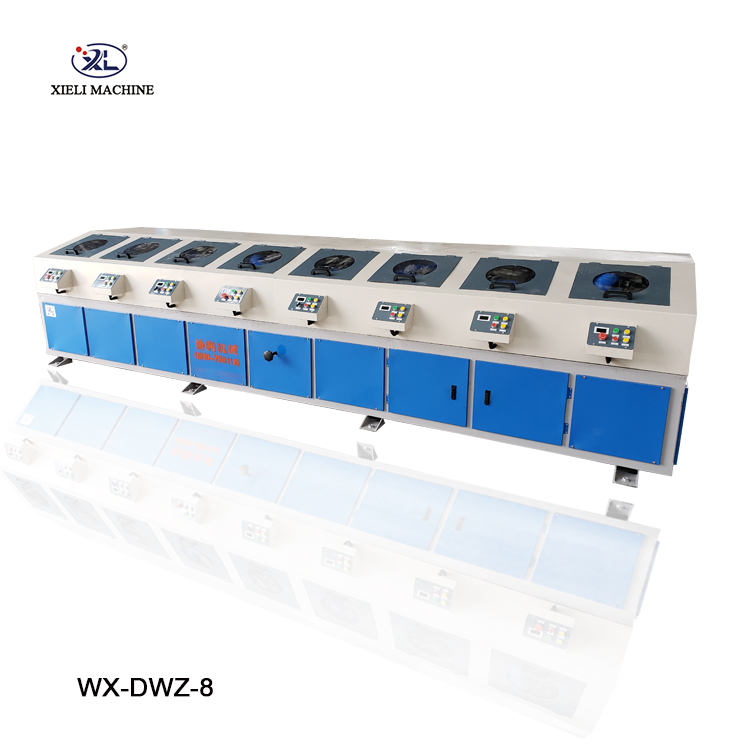

    WX-DWZ Series Multi-station Round Tube Polishing Machine

    Main purpose and scope of application:

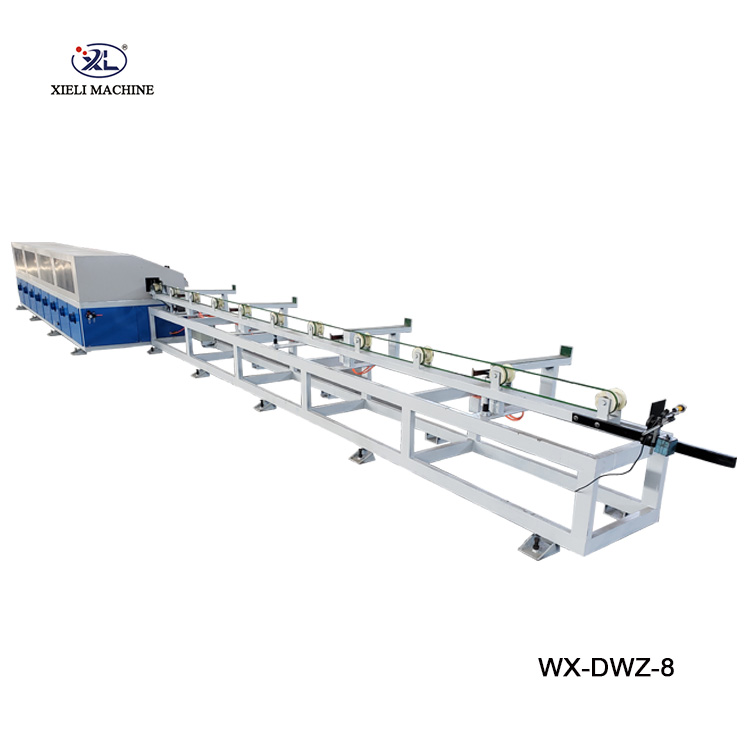

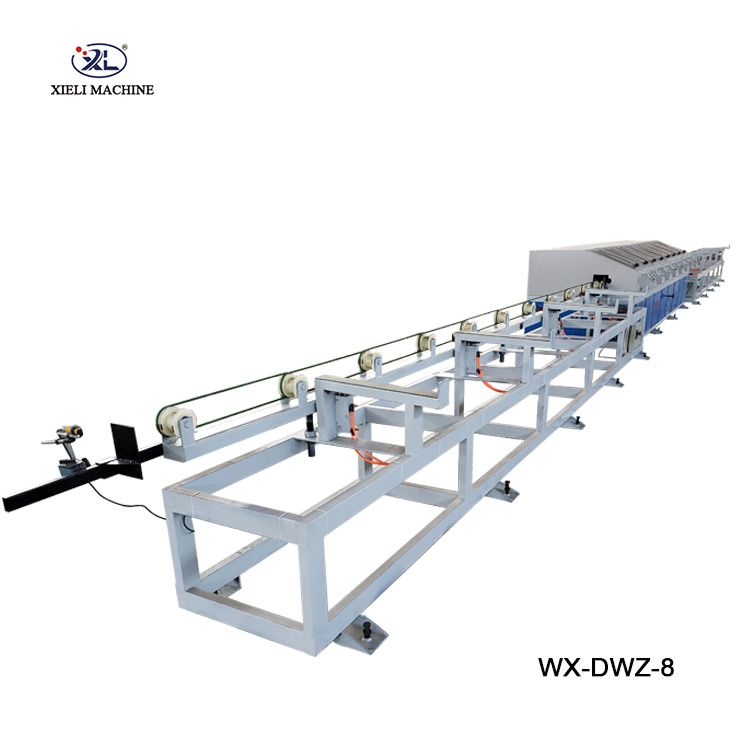

     Round pipe polisher is mainly used for the derusting and polishing of hardware manufacturing, vehicle accessories, hydraulic cylinder, steel and wood furniture, instrument machinery, standard parts and industries before and after electroplating, from rough polishing to fine polishing. Round pipe polisher is the best choice for polishing the round pipe, round rod and slender shaft. The round tube polisher can be equipped with a variety of polishing wheels, such as, Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA etc. the guide wheel is stepless speed control, simple and convenient operation, and the steel structure is optimized to make the performance more stable. The reserved fan port can be equipped with a dedusting fan or a wet dedusting system, which can be matched with an automatic loading and unloading mechanism according to the length of the processed parts.

    Main specification parameters:

    (Special polishing equipment can be customized according to user requirements)

    Project

    Model

    WX-DWZ-2

    WX-DWZ-4

    WX-DWZ-6

    WX-DWZ-8

    WX-DWZ-10

    Input voltage(v)

    380V(Three phase four wire)

    Input power(kw)

    8.6

    18

    26.5

    35.5

    44

    Polishing wheel

    specification(mm)

    250/300*40/50*32(Width can be assembled)

    Guide wheel

    specification(mm)

    100*200

    Polishing wheel

    speed(r/min)

    3000

    Guide wheel speed(r/min)

    Stepless speed regulation

    Machining diameter(mm)

    4-100

    Processing efficiency(m/min)

    0-20

    Surface roughness (um)

    Ra 0.02

    Processing length(mm)

    100-6000

    Wet water cycle dust removal

    optional

    Dry fan dust removal

    optional

    Feeding mode of grinding head

    Digital display electric adjustable

    Machine tool Total weight about(kg)

    800

    1600

    2400

    3200

    4000

    Equipment Overall dimension(m)

    1.4*1.2*1.0

    2.6*1.2*1.0

    3.8*1.2*1.0

    5.0*1.2*1.0

    6.2*1.2*1.0



    Read More About high quality old centerless grinding machine

    Read More About high quality centerless grinder cincinnati

    Round pipe polishing machine is mainly used in hardware manufacturing, vehicle parts, steel and wood furniture, instrument machinery, standard parts and other industries before and after electroplating rust and polishing, is a good choice for round pipe, round rod, slender shaft polishing.

    The machine is completely closed dust-proof structure, good quality, stable operation; Simple operation, easy maintenance, polishing workpiece finish higher favored by domestic and foreign customers! The operator shall not remove the handle without authorization. When stopping, the handle can be loosened only after the high-speed polishing machine has completely stopped rotating. Do not use the polishing pad with dust and dirt. Too much dirt polishing pad can not be cleaned, with timely replacement. When replacing or installing the polishing pad, cut off the power supply.

    Automatic round tube mirror polishing machine guide wheel is stepless speed control, polishing efficiency is easy to control. Optimized machine design, more stable performance, less noise multi-station round tube polishing machine Operation Horizontal multi-station round tube polishing machine is a large round tube polishing machine with multiple grinding heads as one, suitable for multiple polishing of any workpiece with different sizes and diameters.

    Read More About high quality metal polishing machine price

    The polishing process of the round tube polishing machine needs to first fix the round tube to be polished on the workbench, and then rotate the polishing material through the workbench and the motor to grind the polishing material on the surface of the round tube. The whole process needs to control factors such as polishing pressure, rotational speed, and spraying amount of polishing fluid, so as to achieve the best polishing effect.

    The main function of the round tube polishing machine is to polish the round tube, round rod and slender shaft. Polishing using dry polishing form, each time can complete different thickness polishing. This machine can be used for high quality sanding and polishing of aluminum, iron, copper and stainless steel surfaces.

    The workpiece processed by the circular tube polishing machine has high brightness and does not affect the original size of the workpiece, which is especially suitable for the high-gloss polishing of the workpiece processed by the centerless grinder. Round tube polishing machine has the characteristics of high working efficiency. As the main polishing tool in life now, the polishing effect is very good. And whether it is polished furniture and various hardware tools, etc., there will be no damage and defects, easy to use.

    Read More About high quality old centerless grinding machine

  • Need Our Services And Quotes?

    Request a Quote

    If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

    • name*
    • email*
    • phone*
    • message*
Ürünler

İhtiyacınız Olan Ürünü Seçin

Precision CNC Centerless Grinding Machine 0.8-60mm

Hassas CNC Merkezsiz Taşlama Makinesi 0.8-60mm

Auto stainless steel round tube polishing machine

Otomatik paslanmaz çelik yuvarlak boru parlatma makinesi

En sık karşılaştığınız sorunları hızla bulun

New SS Pipe Outer Round Rust Removal Polishing Machine FAQs

  • What is the main application of this polishing machine?

    This machine is specifically designed to remove rust, oxidation, and surface imperfections from the outer surface of stainless steel (SS) round pipes, leaving a clean and polished finish.

  • What pipe sizes can the machine accommodate?

    The machine can process a wide range of pipe diameters, typically from [insert minimum] mm to [insert maximum] mm, depending on the model specifications.

  • Does the machine support adjustable polishing speed?

    Yes, it features variable speed controls to match different material conditions and polishing requirements, ensuring optimal results.

  • What kind of surface finish can be achieved?

    The machine can deliver a variety of finishes, from brushed (satin) to mirror polish, depending on the abrasives or polishing wheels used.

  • What maintenance is needed to keep the machine in good condition?

    Routine maintenance includes cleaning dust and debris, replacing worn polishing belts or wheels, checking motor performance, and lubricating moving parts regularly.
