What is the main function of this polishing machine?

This machine is designed to polish the outer surface of stainless steel pipes and round rods, removing scratches, rust, and imperfections to achieve a smooth or mirror finish.

What size range of pipes and rods can the machine handle?

The machine typically accommodates round rods and pipes with diameters from [insert minimum] mm to [insert maximum] mm. Please refer to the model specifications for exact size compatibility.

Can the machine perform both rough and fine polishing?

Yes, by using different types of abrasive belts or polishing wheels, the machine can carry out rough grinding, fine polishing, or even mirror finishing.

Is this machine suitable for continuous, high-volume operation?

Yes, the machine is designed for industrial use, capable of continuous operation with stable performance, making it ideal for high-volume polishing tasks.

What maintenance is required for optimal performance?

Routine maintenance includes replacing worn abrasives, cleaning the machine after use, checking motor and belt conditions, and lubricating moving parts regularly.

New Stainless Steel Pipe Round Rod Polishing Machine

Yeni paslanmaz çelik boru yuvarlak çubuk parlatma makinesi

Yuvarlak boru parlatma makinesinin prensibi esas olarak, yuvarlak borunun yüzeyinde sürtünme ve darbe oluşturmak için doğru miktarda aşındırıcı ve parlatma sıvısı ile parlatma tekerleğinin yüksek hızda dönmesini kullanmaktır, böylece yüzey kusurları ve çapaklar ortadan kaldırılır, gerekli yüzey pürüzlülüğü ve paralellik elde edilir.

Products Detail

Read More About high quality pipe polishing machine

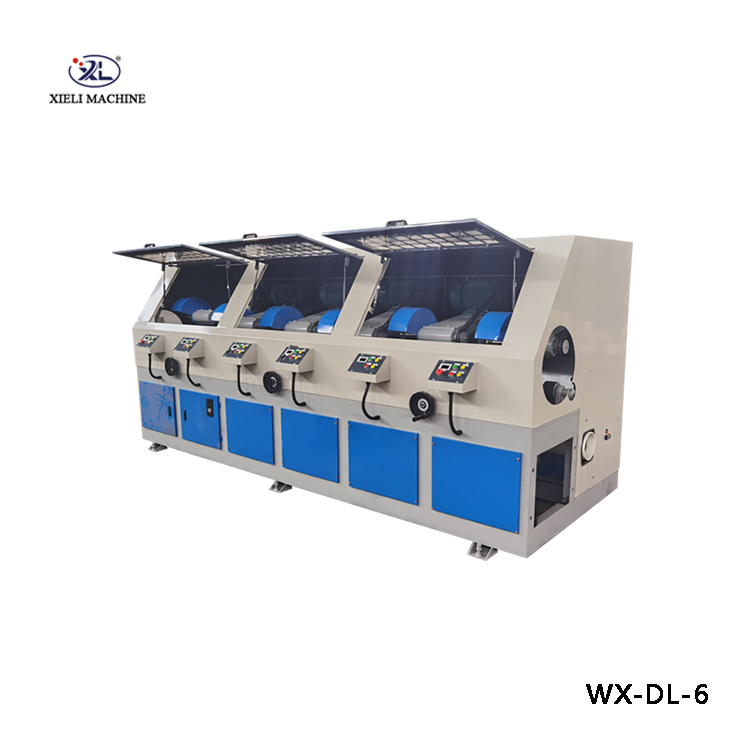

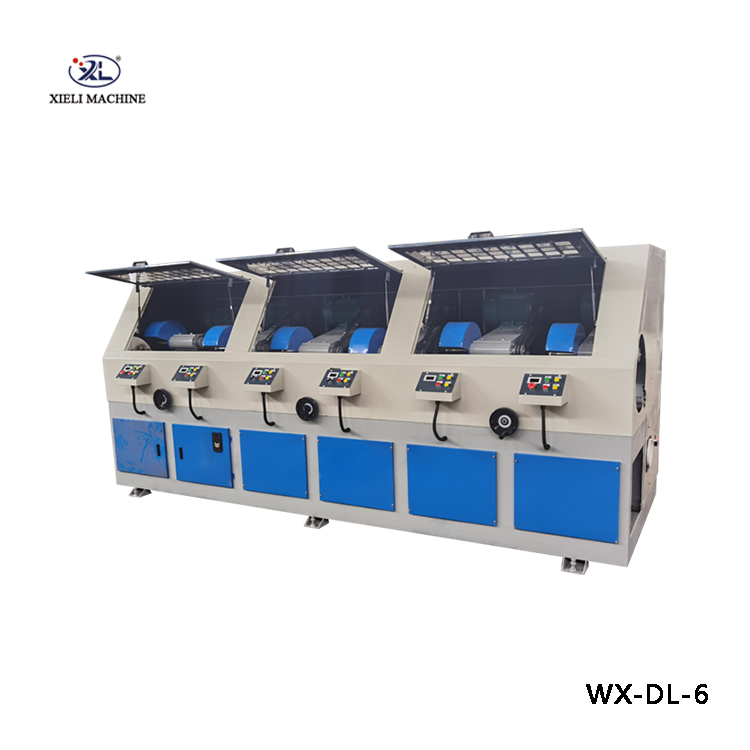

WX-DL series large diameter hydraulic tube polishing machine

Main purpose and scope of application:

Round pipe polishing machine is mainly used for the derusting and polishing of hardware manufacturing, vehicle accessories, hydraulic cylinder, steel and wood furniture, instrument machinery, standard parts and industries before and after electroplating, from rough polishing to fine polishing. A variety of brown and white corundum grinding wheels and polishing wheels such as, Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA, etc. can be installed in the round tube polishing machine. The guide wheel has stepless speed control, which is simple and convenient to operate. The steel structure is optimized to make the performance more stable. The reserved fan port can be equipped with a dust removal fan or a wet dust removal system, which can be matched with an automatic feeding and unloading mechanism according to the length of the processed parts. This device It can be equipped with grinding wheel to grind pin and remove oxide skin (peeling off) on the surface of round steel and pipe with serious defects.

Main specification parameters:

(Special polishing equipment can be customized according to user requirements)

Project Model	WX-DL-2	WX-DL-4	WX-DL-6	WX-DL-8	WX-DL-10
Input voltage(v)	380V(Three phase four wire)
Input power（kw)	13.2	22.2	30.7	38.7	46.7
Polishing wheel specification（mm)	250/30040/5032（Width can be assembled）
Guide wheel specification(mm)	110
Polishing wheel speed(r/min)	3000
Guide wheel speed(r/min)	Stepless speed regulation
Machining diameter(mm)	20-360
Processing efficiency（m/min)	0-8
Surface roughness (um)	Ra 0.02
Processing length（mm）	Determined by bracket length （0.3-12）
Dry fan dust removal	optional
Wet water cycle dust removal	optional
Grinding head feeding mode	Digital display electromagnetic hydraulic control
Passive guide wheel adjustment method	Manual/electric/automatic optional
Machine tool total weight about（kg)	2000	3000	4000	5000	6000
Equipment dimension(m)	1.31.21.5	2.61.21.5	3.91.21.5	5.21.21.5	6.51.21.5

Read More About high quality cincinnati centerless grinder machine

Read More About high quality stainless steel pipe mirror polishing machine

Read More About high quality centerless belt grinding polishing machine

When polishing the round tube, the following points need to be paid attention to: First, the material and hardness of the polishing wheel should match the material being polished to avoid scratches or damage to the surface of the round tube; Secondly, the composition and concentration of the polishing liquid should also be selected and adjusted according to the material being polished to ensure the best surface treatment effect; Finally, the pressure and time during polishing should also be properly controlled to avoid excessive polishing or damage to the surface of the round tube.

Read More About high quality centerless belt grinding polishing machine

The application range of round tube polishing machine is very wide, it can be used to produce a variety of high-precision, high-quality round tube parts, such as automotive, aerospace, medical equipment and other fields. At the same time, the round pipe polishing machine can also be used to clean and remove rust and other surface treatment of the pipeline to ensure the safety and reliability of the pipeline.

In short, the round tube polishing machine is a very practical surface treatment equipment, which can effectively improve the surface quality and accuracy of the round tube, so that it is widely used in various industrial fields.The polishing process of the round tube polishing machine needs to first fix the round tube to be polished on the workbench, and then rotate the polishing material through the workbench and the motor to grind the polishing material on the surface of the round tube. The whole process needs to control factors such as polishing pressure, rotational speed, and spraying amount of polishing fluid, so as to achieve the best polishing effect.

Read More About high quality square tube polishing machine

Need Our Services And Quotes?
Request a Quote

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.
- name*
- email*
- phone*
- message*

Round Rod Polishing Machine Delivers Smooth and Consistent Results

The Round Rod Polishing Machine has exceeded our expectations. It produces a smooth, uniform finish on stainless and mild steel rods. It's easy to operate and maintain, making it a great choice for continuous production.

Kevin Johnson

Production Manager, BrightMetal Works Inc.

Reliable and High-Quality Round Rod Polishing Machine

We’ve been using the Round Rod Polishing Machine for three months now. The build quality is excellent, and it handles different rod diameters with ease. Our team especially appreciates how consistent the polishing results are from batch to batch.

Wang Jun

Workshop Supervisor, Jiangsu Precision Metals

Round Rod Polishing Machine Greatly Improves Efficiency

This Round Rod Polishing Machine helped us cut down manual labor and increased our polishing efficiency. The finish quality is outstanding, and the machine runs smoothly even under long shifts. Definitely worth the investment.

Sophia Martin

Quality Control Lead, NovaTech Fabrication

Excellent Performance from Round Rod Polishing Machine

We needed a dependable solution for rod surface treatment, and this Round Rod Polishing Machine works perfectly. It removes surface imperfections and gives a clean, professional finish. The machine is durable and easy to maintain.
