ម៉ាស៊ីនប៉ូលាបំពង់ដែកអ៊ីណុកសម្រាប់ជុំ

The whole process is fast and efficient, saving time and labor, which can not only improve production efficiency, but also reduce labor costs and energy consumption.

Share:
  • Products Detail

    Read More About monza 4 centerless grinder for sale

    Read More About van norman centerless grinder for sale

    Read More About paragon centerless grinding machine

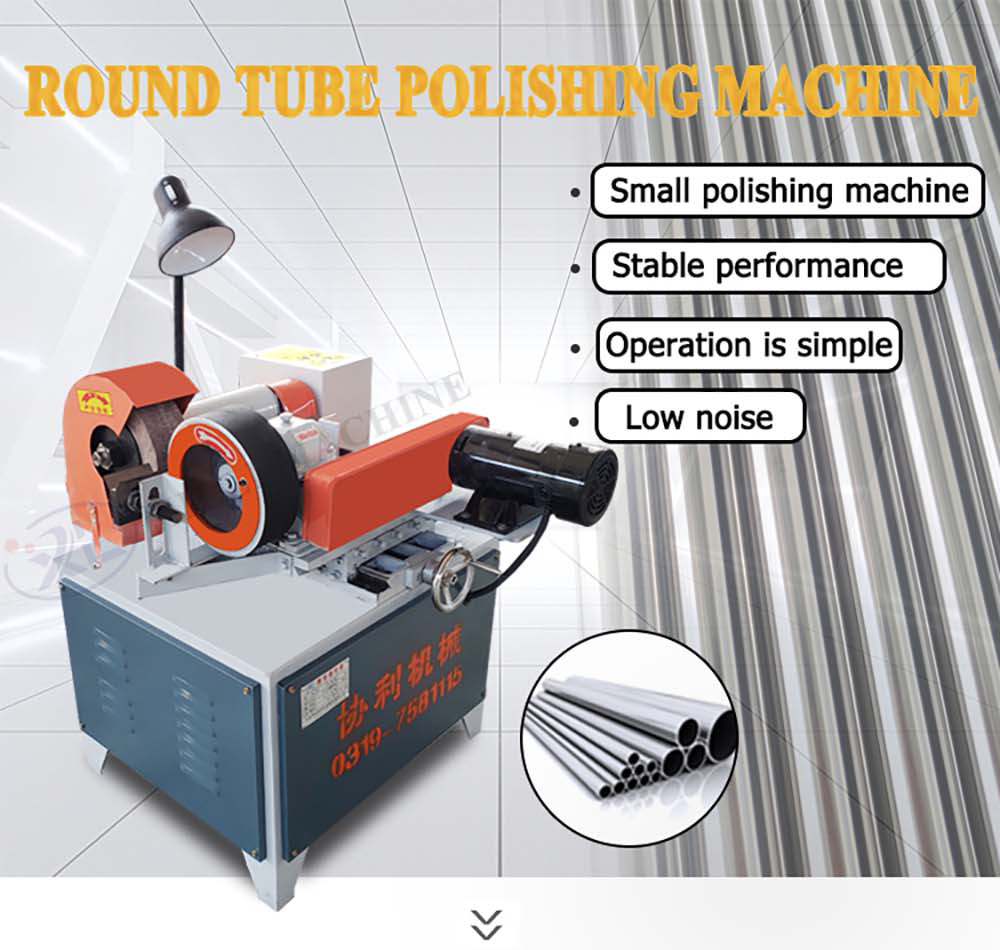

    WX Series Single Grinding Head Round Tube Polisher

    Main purpose and scope of application:

    Round tube polisher is mainly used in hardware manufacturing, vehicle parts,hydraulic cylinders, steel and wood furniture, instrument machinery, standard parts and electroplating industries before and after the rust and polishing. Round tube polishing machine is the best

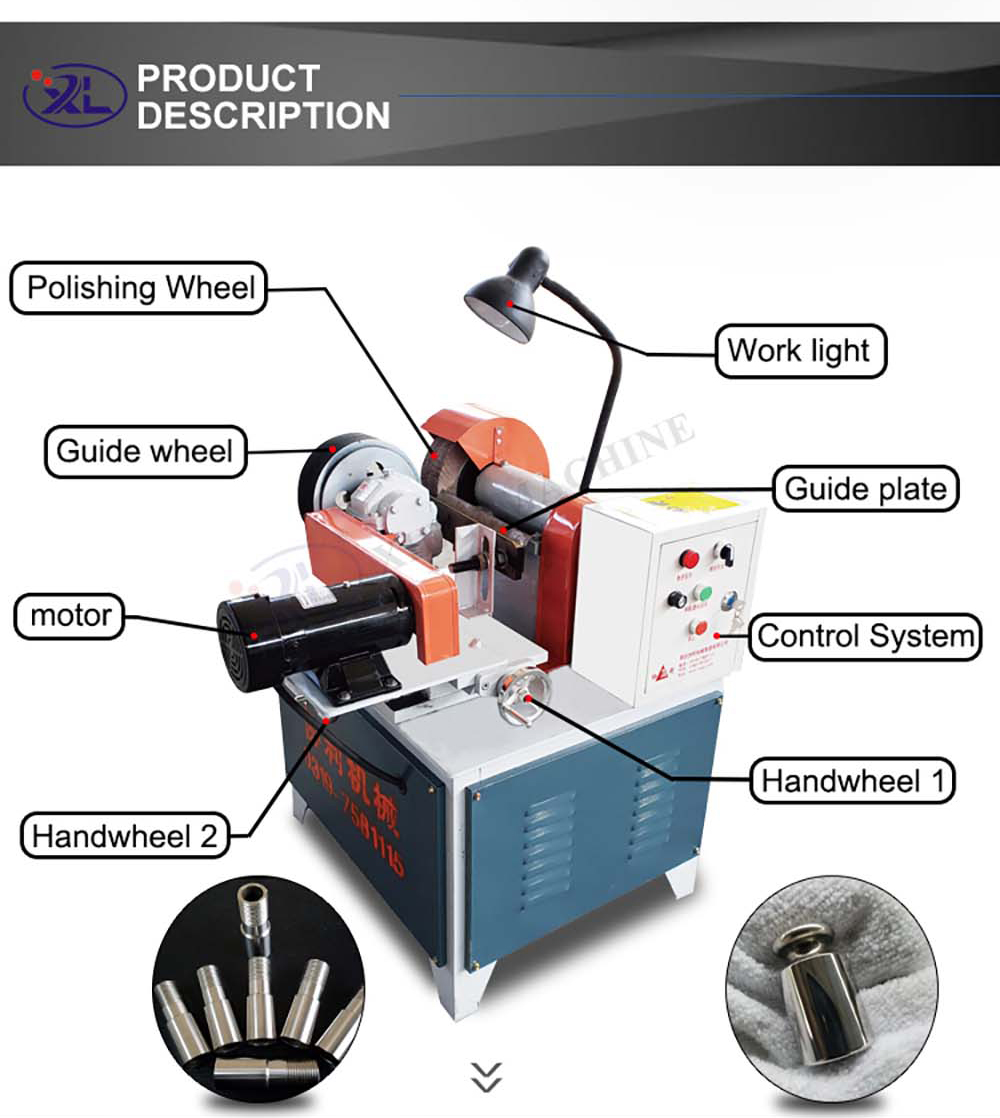

    choice for round tube, round rod, long and thin shaft polishing. Round tube polisher can be installed a variety of polishing wheels, such as Chiba wheel, hemp wheel, nylon wheel, wool wheel, cloth wheel, PVA, etc., guide wheel stepless speed control, simple and convenient operation, optimize the steel structure to make the performance more stable, the fan can be installed with the fan mouth.

    Main specification parameters:

    (Special polishing equipment can be customized according to user requirements)











    WX Series Single Grinding Head Round Tube Polisher

    Project

    Model

    WX-A1-60

    WX-A1-120

    WX-A2-60

    WX-B1-60

    WX-B1-120

    Input voltage(v)

    380V(Three phase four wire)

    Input power(kw)

    3.5

    4.5

    6

    4.5

    4.5

    Polishing wheel

    specification(mm)

    250*40*32(Width can be assembled)

    Guide wheel

    specification(mm)

    230*80

    230*100

    230*120

    Polishing wheel

    speed(r/min)

    3000

    Guide wheel speed(r/min)

    0-120(Stepless speed regulation)

    Machining diameter(mm)

    1-120

    50-180

    1-120

    1-120

    50-180

    Processing efficiency(m/min)

    0-8

    Surface roughness (um)

    Ra 0.02

    Wet water cycle dust removal

    optional

    have

    optional

    Dry fan dust removal

    optional

    have

    optional

    Machine tool total weight about(kg)

    320

    460

    860

    520

    620

    Equipment overall dimension(m)

    0.7*0.8*1.0

    0.8*0.9*1.0

    1.2*0.9*1.5

    1.0*0.9*1.0

    1.1*1.0*1.0

    The whole process is fast and efficient, saving time and labor, which can not only improve production efficiency, but also reduce labor costs and energy consumption. The polishing effect of the round tube pipe polishing machine is very good, and the rough surface can be treated into a smooth and flat surface, which can be applied to round pipes tubes of various materials, such as stainless steel pipe, aluminum alloy pipe, copper pipe and so on. It can meet the requirements of surface quality and finish, and extend the service life of the product while ensuring the processing quality. In short, the round tube pipe polishing machine has a variety of advantages, including high efficiency, high quality, easy operation and low energy consumption, and is an indispensable equipment in the field of circular pipe processing.Through reasonable maintenance and maintenance, the round tube polishing machine can perform processing operations stably for a long time, effectively improving production efficiency and product quality.



    The round tube pipe polishing machine can also achieve different polishing methods, such as bright surface polishing, mirror polishing, burr removal and so on. According to different needs, different polishing methods can be selected to achieve better processing results. Moreover, the round tube polisher is robust, assembled from high-quality materials and parts, and can run for a long time without problems. In daily maintenance, only simple cleaning and maintenance are needed to keep the equipment working normally. In general, round tube polishers can provide efficient, precise and high-quality processing solutions for round tube processing. It can not only improve processing efficiency and product quality, but also reduce labor costs and waste generated, and is a very valuable mechanical equipment.



    Read More About monza centerless grinder for sale

    Read More About supertec centerless grinder for sale

    Read More About van norman centerless grinder for sale

  • Need Our Services And Quotes?

    Request a Quote

    If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

    • name*
    • email*
    • phone*
    • message*
ផលិតផល

ជ្រើសរើសផលិតផលដែលអ្នកត្រូវការ

Precision CNC Centerless Grinding Machine 0.8-60mm

ភាពជាក់លាក់ CNC ម៉ាស៊ីនកិនគ្មានកណ្តាល 0.8-60mm

Auto stainless steel round tube polishing machine

ម៉ាស៊ីនប៉ូលាបំពង់មូលដែកអ៊ីណុកដោយស្វ័យប្រវត្តិ

ស្វែងរកបញ្ហាដែលអ្នកជួបប្រទះញឹកញាប់បំផុតយ៉ាងឆាប់រហ័ស

Stainless Steel Pipe Polishing Machine For Round FAQs

  • What range of pipe diameters can this machine polish?

    It typically handles round stainless steel pipes with diameters ranging from 10mm to 219mm, with custom options available for larger or smaller sizes.

  • What types of surface finishes can be achieved?

    The machine can produce mirror polish, brushed, satin, and matte finishes, depending on the polishing wheels, abrasives, and settings used.

  • Is it suitable for continuous production or batch processing?

    Yes, the machine is designed for both continuous high-volume production and batch operations, making it ideal for industrial use.

  • Can it be used on materials other than stainless steel?

    While optimized for stainless steel, it can also polish aluminum, brass, and carbon steel pipes with appropriate adjustments.

  • Is the machine easy to operate and maintain?

    Yes, it features user-friendly controls, and maintenance mainly involves regular cleaning, wheel replacement, and checking of mechanical parts to ensure long-term performance.
